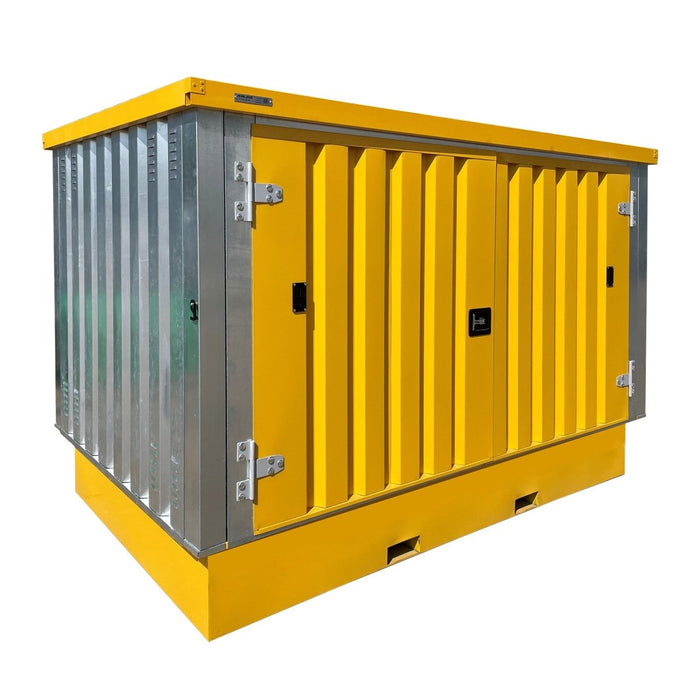

KDC Flatpack Double IBC Store

The KDC Double IBC Store is a flat-packed, portable IBC store fully constructed from steel. Perfect for industrial and agricultural use, the unit provides a secure storage solution for chemicals, oils and other hazardous goods on site. Double doors, with door clips, provide excellent access and protection against windy conditions whilst the ventilation panels prevent the build-up of dangerous fumes.

The knock-down construction (KDC) design allows the storage container to be assembled and dismantled quickly without the need for specialist tools or technical expertise. Individual steel panels are lightweight enough to be handled manually, enabling the entire unit to be assembled on site by just two people which also keeps costs to a minimum for relocation.

The safe storage and management of any chemicals placed within this unit is the responsibility of the user, including conducting suitable risk assessments and method statements. Yellow Shield Ltd and SOLMHA Group cannot be held responsible for any damage resulting from stored chemicals.

Specification:

Features & Benefits:

• Fully galvanised steel construction for long-lasting durability in demanding environments
• COSHH-compliant chemical storage design suitable for hazardous substances
• Supplied flat-packed with modular design for easy delivery, handling and on-site assembly
• Designed for relocation, it can be dismantled and moved between sites to minimise costs
• Large 1120L sump capacity for effective spill containment

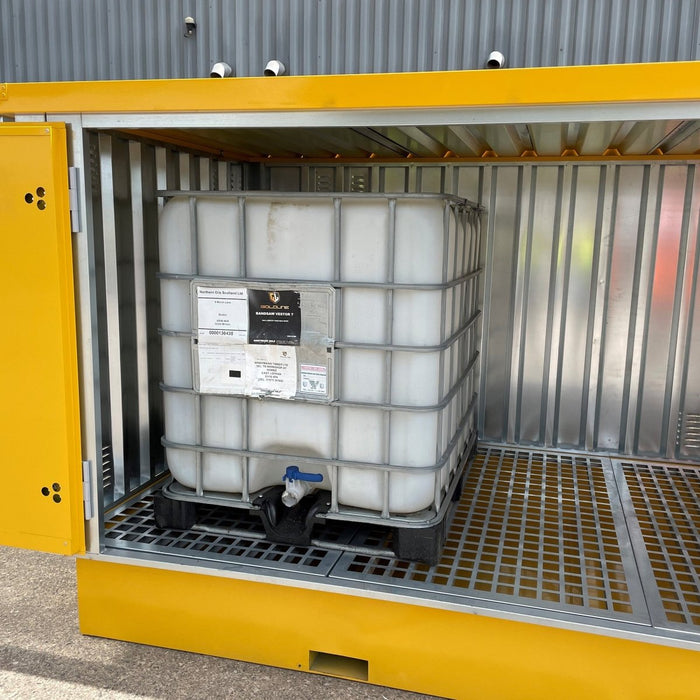

• Galvanised steel grid flooring positioned above the sump to support containers and capture leaks
• Built-in ventilation panels to reduce the build-up of hazardous fumes
• Integrated gutter system prevents collection of rain water
• Additional internal space allows for pumps or outlets when storing IBCs
• Double outward-opening doors for easy access and reduced wind resistance
• Door hold-open clips allow safe access in windy conditions
• Low-threshold entry removes front lip to prevent forklift damage during loading
• Heavy-duty galvanised hinges for strength and long-term reliability
• T-lock handle compatible with padlocks (not supplied) for flexible, multi-user access without keys

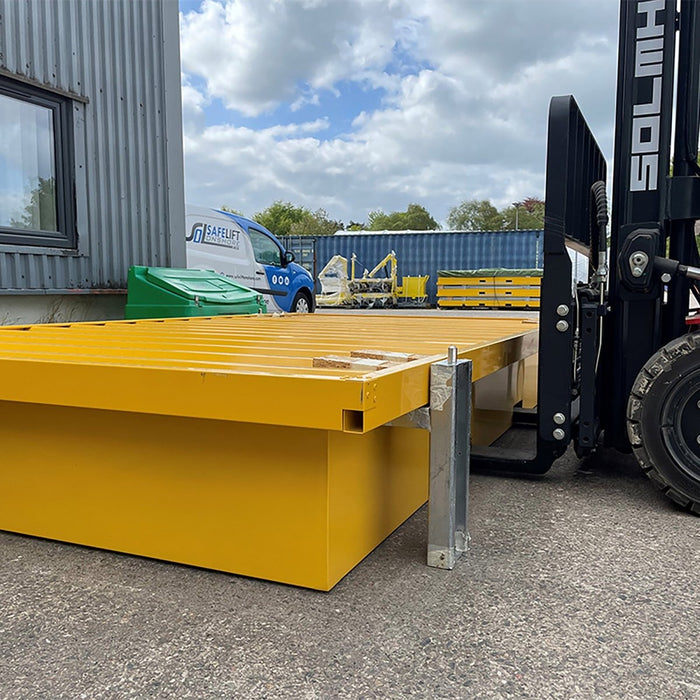

• Integrated forklift pockets for easy transport when flat-packed or assembled

Guarantee:

• 1 Year guarantee against main body work and structure corrosion

Legislation:

According to Health and Safety Executive guidance HSG51 (1998), minimum separation distances should be maintained when storing flammable liquids outdoors. The recommended distances are outlined below:

Up to 1,000 litres: Minimum distance of 2 metres

1,000 – 100,000 litres: Minimum distance of 4 metres

Over 100,000 litres: Minimum distance of 7.5 metres

If these separation distances cannot be achieved, or if the store is to be located inside a building, a fire-rated storage unit should be used instead.

Downloads:

• GA Drawing
• Delivery & Ground Preparation

• Component Weights
