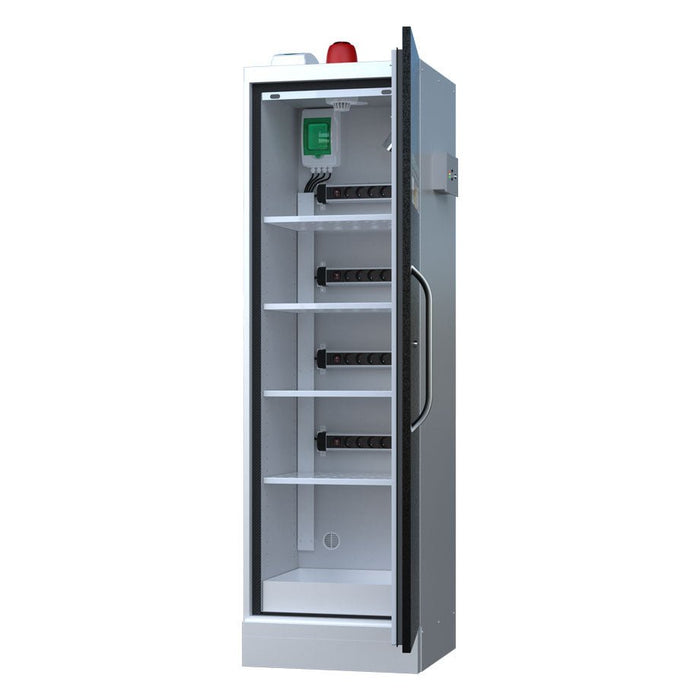

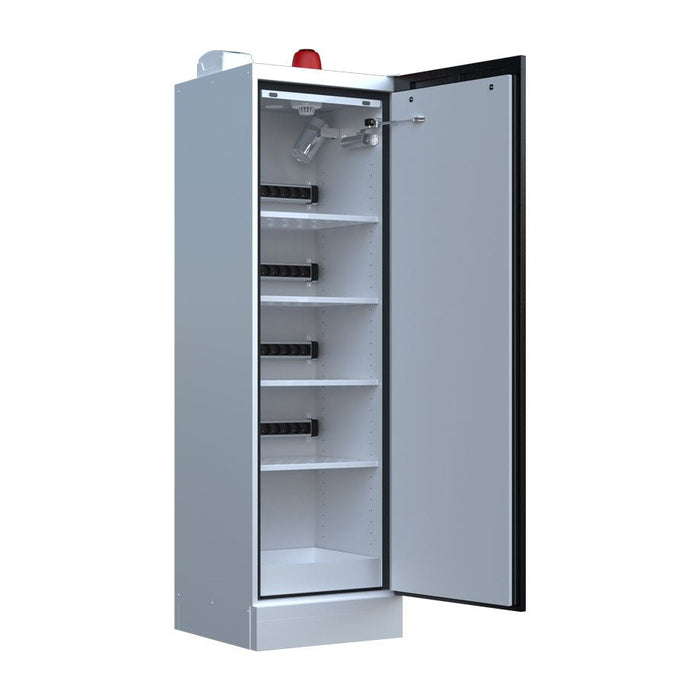

Lithium-Ion Battery Cabinet | 1 Door with FirePro® Suppression & Charging Points

Designed for the safe storage & chargin of Lithium-Ion batteries. Fabricated from 1.5mm thick cold-pressed sheet steel & finished in anti-acid epoxy powder paint, this cabinet is fitted with 4 perforated shelves. The suppression system is a FirePro® fire detection and automatic extinguishing generator typically triggered by a Thermo Activator bulb which provides an additional layer of safety to reduce potential fire incidents during charging. Charging sockets rated at 16A, featuring a 32A circuit breaker and an illuminated on/off safety switch. The control panel provides more options and manual control over the FirePro® system.

This cabinet will be delivered stood upright. If it arrives laying down please reject it and contact us immediately.

Features:

• 24 power sockets for battery charging (6 x power sockets per shelf)
• Automatic hydraulic closing door system operates at high temperatures
• Anti-spark hinges
• Ventilation
• 5G6mm2 Cable section & 4-pole plug
• FPC-2V2 Control panel
• Sounder beacon
• Smoke & heat sensors

Specification:

• External Dimensions: 595mm (L) x 600mm (W) x 1950mm (H)
• Empty Weight: 210kg
• Certified 90-minute fire resistance to EN 14470-1 TYPE 90
• LPCB Certified to EN 12094-1 and EN 54-2 and 4
