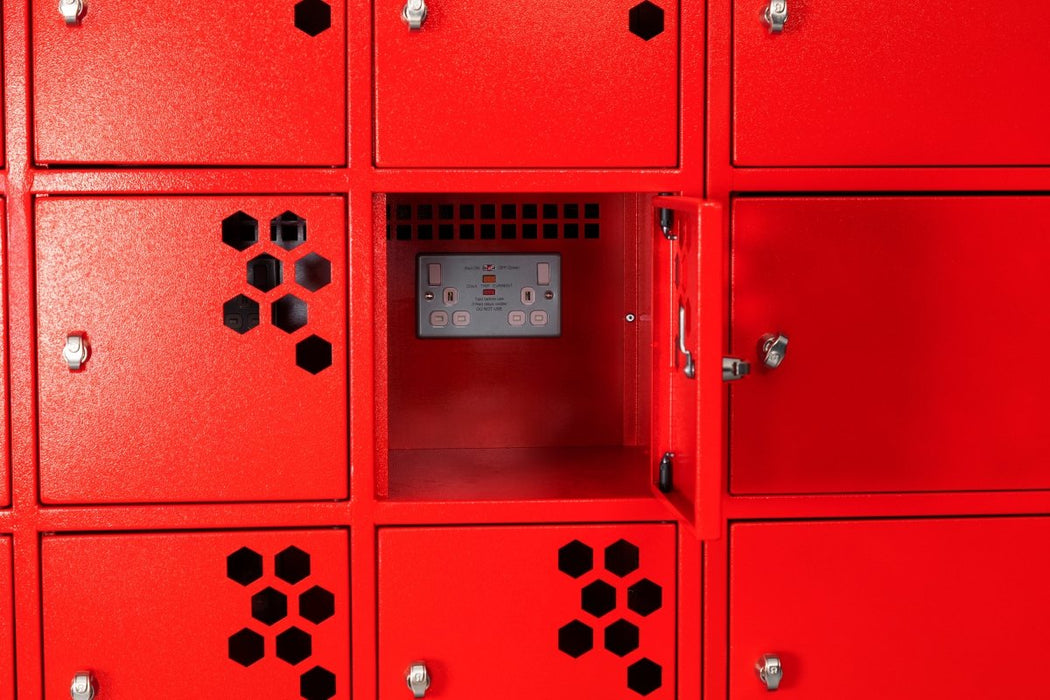

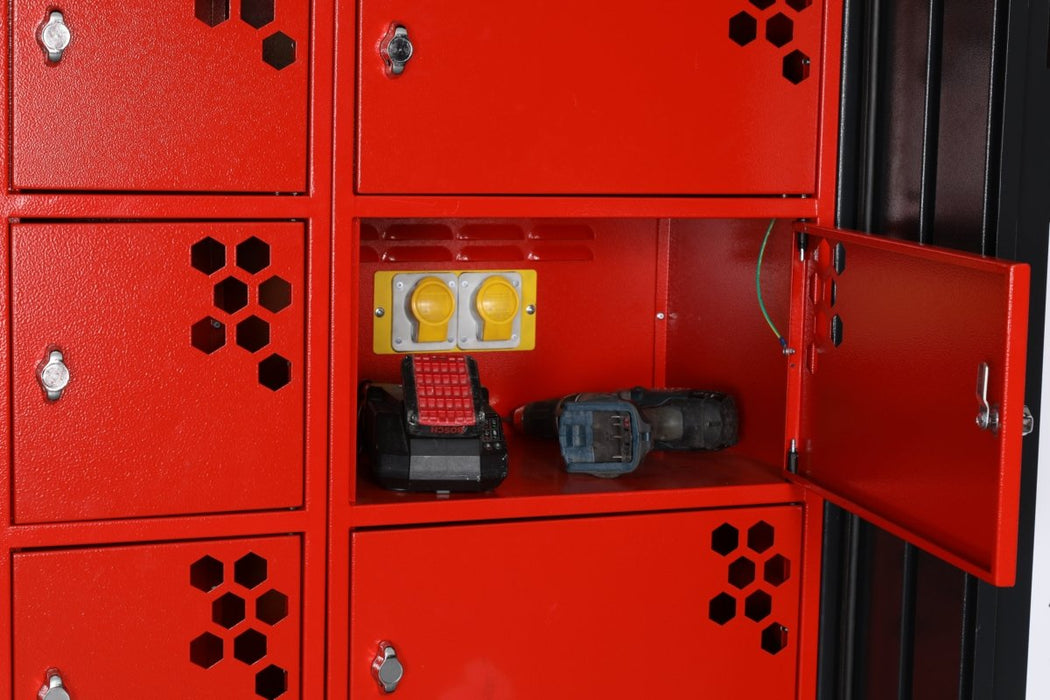

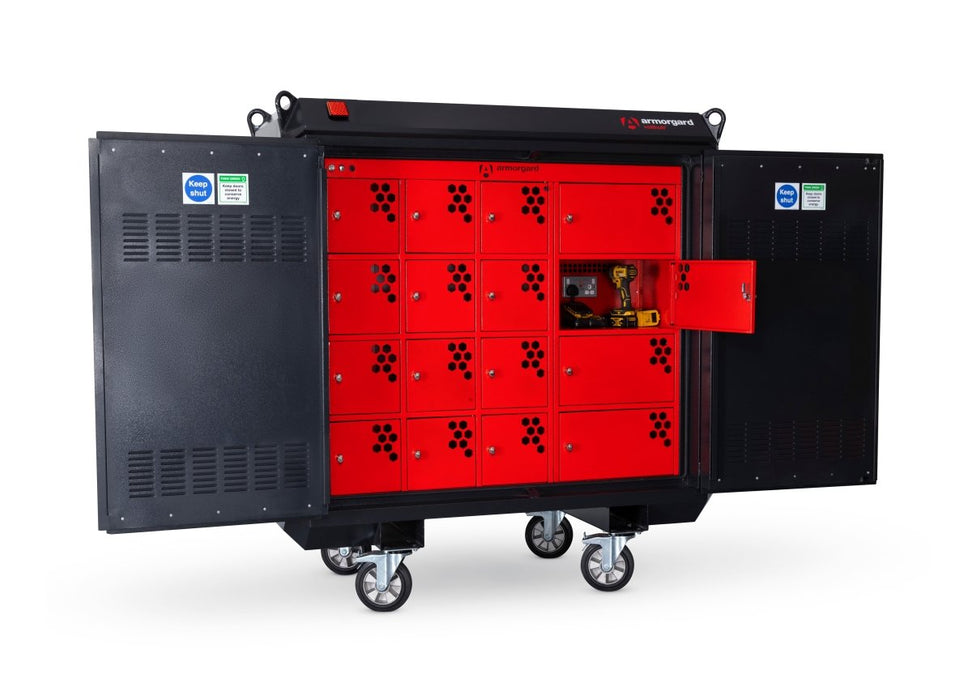

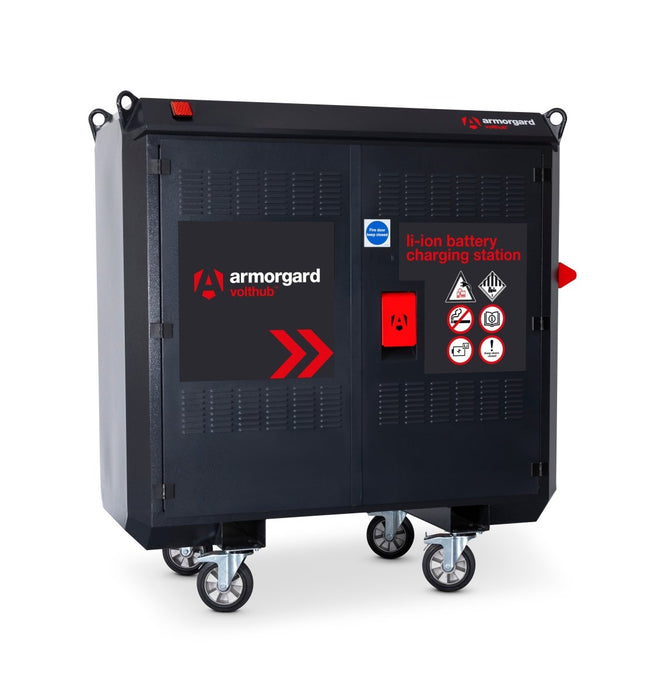

VoltHub™ VH16 Battery Charging 16 Locker Station
The VoltHub™ VH16 is a secure, mobile unit designed for the safe charging & storage of Li-ion batteries. Suitable for use both inside and out, the Volthub™ is IP55 rated and fitted with a universal communications port designed to integrate seamlessly into your site’s fire control system. Compatible with: WES, ProLink, Cygnus systems and more.
Unless selected otherwise, this store must be offloaded from the delivery vehicle by the customer.
Features:
- Available in 240v or 110v
- Power cut-off when the internal temperature reaches / exceeds 60℃
- Forced ventilation to ensure keep air flow
- Thermostatic heater keeps the temperature at optimum levels

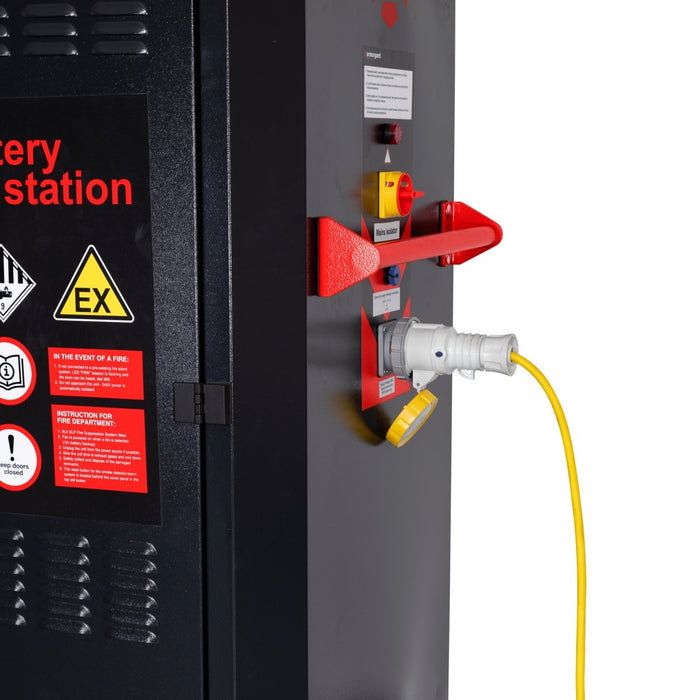

- Isolator switch for power to the VoltHub™
- The fire suppression and alert systems will still operate without mains power
- Visual and audible alarm when there is a fire
- Fire suppression system for responding to fires
- GSM phone and text alert when there is a fire
- Early warning detection
- Humidity sensor
Specification:
- External Dimensions: 1770 (W) x 750 (D) x 1820 (H) mm
- Small Locker Internal Dimensions: 260 (W) x 355 (D) x 260 (H) mm
- Large Locker Internal Dimensions: 475 (W) x 355 (D) x 260 (H) mm
- Weight: 334kg (empty)
- VH16-240v Data Sheet Download
- VH16-110v Data Sheet Download
