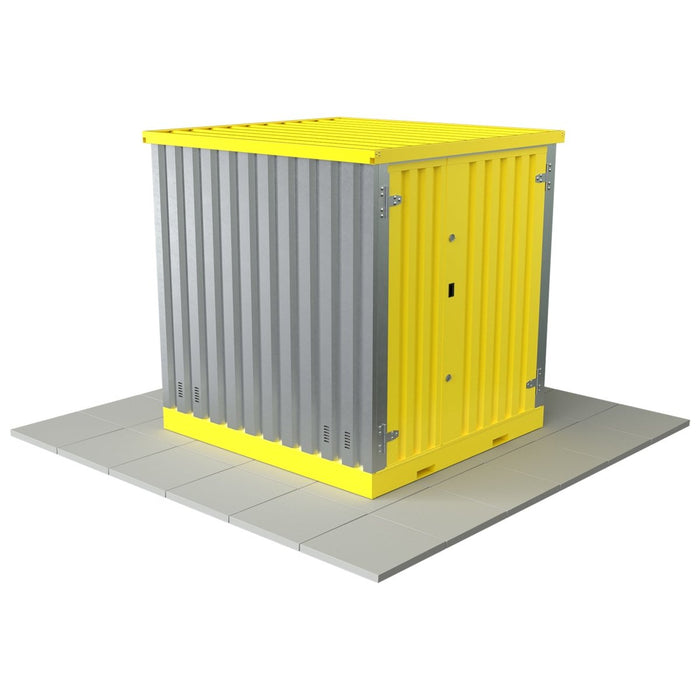

KDC Bunded COSHH Chemical Store | 2m
The KDC Bunded COSHH Chemical Store | 2m provides a secure, COSHH-compliant solution for storing hazardous substances. Built from fully galvanised steel with a leak-proof bunded base, integrated ventilation and high-security locks, it ensures safe chemical storage on industrial or agricultural sites.
The knock-down construction (KDC) design allows the storage container to be assembled and dismantled quickly without the need for specialist tools or technical expertise. Individual steel panels are lightweight enough to be handled manually, enabling the entire unit to be assembled on site by just two people.
The safe storage and management of any chemicals placed within this unit is the responsibility of the user, including conducting suitable risk assessments and method statements. Yellow Shield Ltd and SOLMHA Group cannot be held responsible for any damage resulting from stored chemicals.
Specification:
| Specification | Details |
|---|---|
| Length | 2062mm |
| Width | 1942mm |
| Height | 2172mm |
| Door Width | 1654mm |
| Door Height | 1893mm |
| Roof Overhang | 40mm |
| Forklift Pocket Centres | 850mm |
| Internal Height | 1950mm |
| Internal Width | 1865mm |
| Internal Length | 1980mm |
| Weight | 600kg |
| Colour | Steel / Yellow (RAL 1003) |
| Material | 1.2mm Steel |
| Finish | Galvanised & Powder Coated |
| Flatpack Height | 300mm |
| Sump Capacity | 680L |
| Rated Floor Capacity | 250kg/m² |
| Snow Roof Capacity | 150kg/m² |

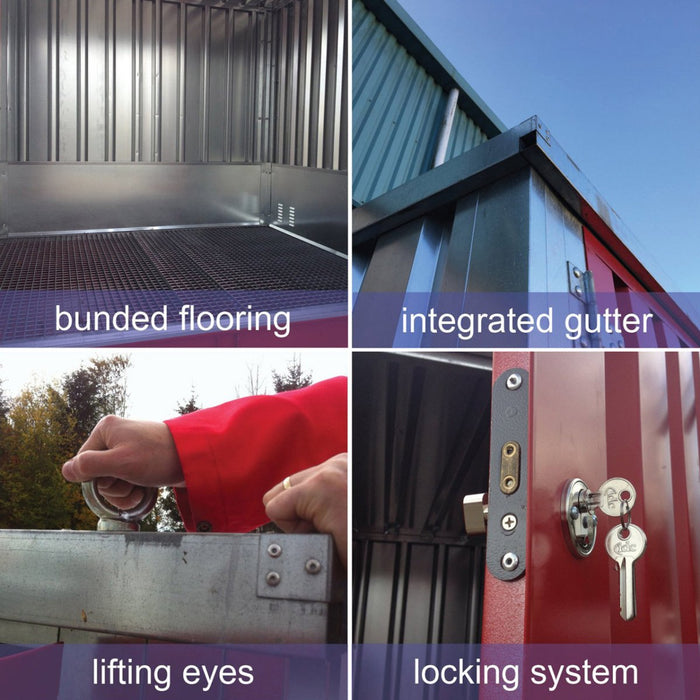

Features & Benefits:
- COSHH Compliant
- Fully galvanised steel construction with powder-coated elements for long-lasting outdoor chemical storage
- Removable metal grid flooring
- Integrated ventilation panels improve airflow and minimise the build-up of hazardous chemical fumes
- Double outward-opening doors for easy access when loading and unloading stored chemicals or fuels
- High-security locking system with UK Locksmith Association approved top and bottom locks supplied with spare keys
- Built-in rainwater gutter system helps channel water away and extend the lifespan of the chemical storage unit
- Forklift pockets integrated into the base for safe transport and positioning of the chemical store
- Lifting eyes fitted for safe placement of the storage container when empty
Guarantee:
- 1 Year guarantee against main body work and structure corrosion
Legislation:
According to Health and Safety Executive guidance HSG51 (1998), minimum separation distances should be maintained when storing flammable liquids outdoors. The recommended distances are outlined below:
Up to 1,000 litres: Minimum distance of 2 metres
1,000 – 100,000 litres: Minimum distance of 4 metres
Over 100,000 litres: Minimum distance of 7.5 metres
If these separation distances cannot be achieved, or if the chemical store is to be located inside a building, a fire-rated storage unit should be used instead.
